MAS Aluminium
offers wide range of Perforated Cable Trays suitable for
electrical cabling work, in two different versions. One in
Aluminium and other in regular type, i.e. MS sheets. Both of
these versions are available in 1.6 mm & 2.0 mm thickness or as
per the client’s requirement. In MS version, further options are
available in Galvanized, Hot dipped galvanized, Powder Coated
or painted, ensuring total protection against rusting, resulting
longer life. The price list for these versions of Cable Trays
will be available to you on request. |
PERFORATED CABLE TRAYS
• PERFORATED CABLE TRAYS WITH STRAIGHT FLANGE
• PERFORATED CABLE TRAYS WITH INWARD BEND
• PERFORATED CABLE TRAY ACCESSORIES |
|

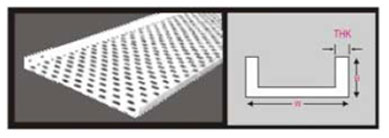

PERFORATED CABLE TRAYS WITH STRAIGHT FLANGE
|
| Sr. |
Width |
Height |
Thickness |
Sr. |
Width |
Height |
Thickness |
| 01 |
50 |
35 |
0.9 |
17 |
225 |
35 |
1.2 |
| 02 |
50 |
35 |
1.0 |
18 |
255 |
35 |
1.5 |
| 03 |
50 |
35 |
1.2 |
19 |
300 |
35 |
1.0 |
| 04 |
50 |
35 |
1.5 |
20 |
300 |
35 |
1.2 |
| 05 |
75 |
35 |
0.9 |
21 |
300 |
35 |
1.5 |
| 06 |
75 |
35 |
1.0 |
22 |
450 |
35 |
1.2 |
| 07 |
75 |
35 |
1.2 |
23 |
450 |
35 |
1.5 |
| 08 |
75 |
35 |
1.5 |
24 |
450 |
35 |
2.0 |
| 09 |
100 |
35 |
0.9 |
25 |
600 |
35 |
1.2 |
| 10 |
100 |
35 |
1.0 |
26 |
600 |
35 |
1.5 |
| 11 |
100 |
35 |
1.2 |
27 |
600 |
35 |
2.0 |
| 12 |
100 |
35 |
1.5 |
28 |
750 |
35 |
1.5 |
| 13 |
150 |
35 |
1.0 |
29 |
750 |
35 |
2.0 |
| 14 |
150 |
35 |
1.2 |
30 |
900 |
35 |
1.5 |
| 15 |
150 |
35 |
1.5 |
31 |
900 |
35 |
2.0 |
| 16 |
225 |
35 |
1.0 |
|
|
|
|
|
|
|
Note: Above sizes are standard, any sizes can be made as per requirement.
• Width range: 50mm to 900mm
• Thickness range: 1mm to 2.5mm
• Surface Finish: Pre-coated GI sheet / Hot-Dip Galvanized/Powder coating/Epoxy paint |
| PERFORATED CABLE TRAYS WITH INWARD BEND |
| Sr. |
Width |
Height |
Thickness |
Sr. |
Width |
Height |
Thickness |
| 01 |
50 |
50 |
0.9 |
17 |
225 |
50 |
1.2 |
| 02 |
50 |
50 |
1.0 |
18 |
255 |
50 |
1.5 |
| 03 |
50 |
50 |
1.2 |
19 |
300 |
50 |
1.0 |
| 04 |
50 |
50 |
1.5 |
20 |
300 |
50 |
1.2 |
| 05 |
75 |
50 |
0.9 |
21 |
300 |
50 |
1.5 |
| 06 |
75 |
50 |
1.0 |
22 |
450 |
50 |
1.2 |
| 07 |
75 |
50 |
1.2 |
23 |
450 |
50 |
1.5 |
| 08 |
75 |
50 |
1.5 |
24 |
450 |
50 |
2.0 |
| 09 |
100 |
50 |
0.9 |
25 |
600 |
50 |
1.2 |
| 10 |
100 |
50 |
1.0 |
26 |
600 |
50 |
1.5 |
| 11 |
100 |
50 |
1.2 |
27 |
600 |
50 |
2.0 |
| 12 |
100 |
50 |
1.5 |
28 |
750 |
50 |
1.5 |
| 13 |
150 |
50 |
1.0 |
29 |
750 |
50 |
2.0 |
| 14 |
150 |
50 |
1.2 |
30 |
900 |
50 |
1.5 |
| 15 |
150 |
50 |
1.5 |
31 |
900 |
50 |
2.0 |
| 16 |
225 |
50 |
1.0 |
|
|
|
|
|
|
Note: Above sizes are standard, any sizes can be made as per requirement.
• Width range: 50mm to 900mm
• Thickness range: 1mm to 2.5mm
• Surface Finish: Pre-coated GI sheet / Hot-Dip Galvanized/Powder coating/Epoxy paint |
| PERFORATED CABLE TRAY ACCESSORIES |
 |
 |
 |
 |
| BEND 45° WITH STRAIGHT FLANGE |
BEND 45° WITH
INSIDE BEND |
BEND 90° WITH
STRAIGHT FLANGE |
BEND 90° WITH
INSIDE BEND |
| |
|
|
|
 |
 |
 |
 |
CROSS WITH
STRAIGHT FLANGE |
CROSS WITH
INSIDE BEND |
VERTICAL BEND
(INSIDE) |
VERTICAL BEND
(OUTSIDE) |
| |
|
|
|
 |
|
|
|
| COUPLER PLATES |
|
|
|
|
 |
 |

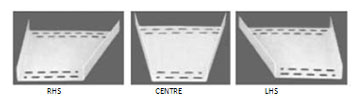

| REDUCER |

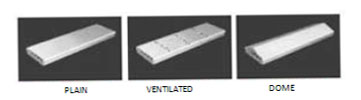

COVERS FOR CABLE TRAYS |
|
Note: Any sizes can be made as per requirement.
• Thickness range: 1mm to 2.5mm
• Surface Finish: Pre-coated GI sheet / Hot-Dip Galvanized/Powder coating/Epoxy paint |
| Top |

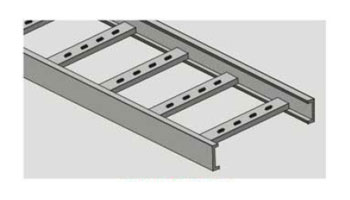

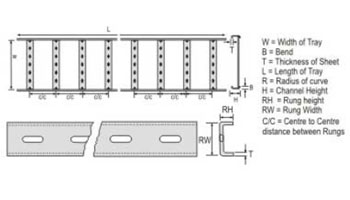

| LADDER TYPE CABLE TRAYS |
|
| Sr. |
Width |
Height |
Thickness |
| 01 |
150 |
125 |
1.2 |
| 02 |
150 |
125 |
1.5 |
| 03 |
150 |
125 |
2.0 |
| 04 |
225 |
125 |
1.2 |
| 05 |
225 |
125 |
1.5 |
| 06 |
225 |
125 |
2.0 |
| 07 |
300 |
125 |
1.2 |
| 08 |
300 |
125 |
1.5 |
| 09 |
300 |
125 |
2.0 |
| 10 |
450 |
125 |
1.5 |
| 11 |
450 |
125 |
2.0 |
| 12 |
600 |
125 |
1.5 |
| 13 |
600 |
125 |
2.0 |
| 14 |
750 |
125 |
1.5 |
| 15 |
750 |
125 |
2.0 |
| 16 |
900 |
125 |
1.5 |
| 17 |
900 |
125 |
2.0 |
| 18 |
1000 |
125 |
2.0 |
 |
Note: Above sizes are standard, any sizes can be made as per requirement.
• Width range: 100mm to 1000mm
• Thickness range: 1.5mm to 3mm
• Surface Finish: Pre-coated GI sheet / Hot-Dip Galvanized/Powder coating/Epoxy paint |
| LADDER TYPE CABLE TRAY ACCESSORIES |
 |
 |
 |
 |
| BEND 45° LADDER TYPE |
BEND 90° LADDER TYPE |
CROSS LADDER TYPE |
VERTICAL BEND (INSIDE) |
| |
|
|
|
 |
 |
 |
|
VERTICAL BEND
(OUTSIDE) |
TEE LADDER TYPE |
REDUCER LADDER TYPE |
|
| |
|
|
|
|
| NOTE: We also supply relevant and suitable hardware with the cable trays. |
